AVEVA P&ID: An Intelligent P&ID Design Application Based on AutoCAD

AVEVA P&ID is a P&ID drawing program that enables users to create intelligent, project-wide data while designing P&IDs using the familiar AutoCAD drawing system. It can be utilized to generate a variety of documents such as drawings, isolations, reports, and lists.

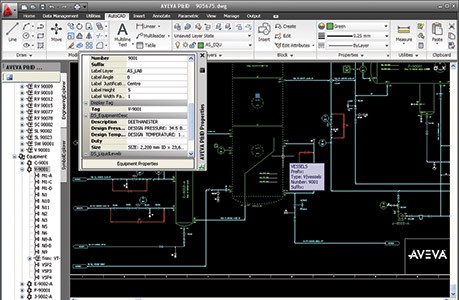

avevasolutionsproductfinderavevapid1文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

The ISO 15926 import/export functionality supports the integration of non-intelligent CAD files or the exchange of drawings and data with schematic model databases, thus facilitating integration with downstream engineering and design activities.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

AVEVA P&ID has been proven in countless small and large-scale projects across multiple industries, including large projects with hundreds or even thousands of P&IDs in a single design. It adopts a centralized data management approach that reduces the risk by minimizing the likelihood of human error.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

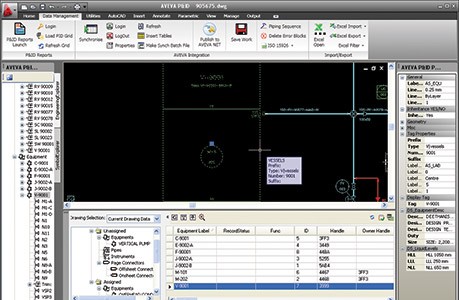

avevasolutionsproductfinderavevapid2文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

AVEVA P&ID is highly suitable for EPCs and owner-operators to implement basic and detailed engineering design. It has been used in the development of many global projects, covering all power generation and maritime markets, including nuclear energy.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

Features and Functions:

  • Design Efficiency

Automatically create data while drawing P&IDs.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

  • Save Time and Cost

Efficient design allows users to reuse this data in subsequent projects.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

  • Eliminate Errors

Intelligent data generated based on design rules can ensure data integrity from the start.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

  • Easy to Adopt

The familiar Auto-CAD environment aids in user learning; the user-friendly menu allows users to quickly become proficient.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

Ensuring Design Integrity from the Start

AVEVA P&ID can be used as a standalone application or as a key part of the AVEVA integrated engineering and design product suite; it is characterized by fast setup, easy configuration, and high efficiency; it supports different engineering design standards, individual company work methods, and complex projects.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/388.html

Throughout the entire lifecycle of the design process, AVEVA P&ID allows users to assign real values to design data in a predefined project environment. AVEVA P&ID can be closely associated with databases so that changes can be merged from the database to the P&ID and vice versa; it can also store all intelligent engineering data into AutoCAD® drawings and be used to regenerate the project database when needed.

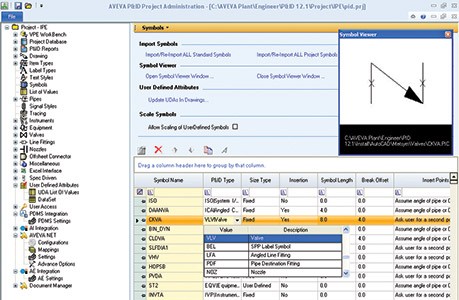

avevasolutionsproductfinderavevapid5
