ZWPD software | Intelligent P&ID Just how smart is it?

Flow diagrams, as a key part of plant design, are deeply connected to the entire design direction. An intelligent flow diagram design software can improve the efficiency of designers, reduce simple and repetitive tasks, allowing designers to focus more on the design itself, enhance the accuracy and perfection of the design, and more easily solve the more complex plant design problems. This system can maintain the data linkage between P&ID and the 3D plant design model, check the accuracy of the 3D model based on the P&ID, saving post-review workload, accelerating design progress, and reducing the probability of design errors to a certain extent, benefiting later drawings and construction.

ZWPD intelligent flow diagram design software is a process system diagram software released by Beijing Zhongwei Digital Technology Co., Ltd., based on a database system and standard-driven. It is a design software project used to create, modify, and manage pipeline and process flow diagrams.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/167.html

As an important part of the ZWPD digital factory design solution of Beijing Zhongwei Digital Technology Co., Ltd., the information carried by P&ID is not only the graphic information of the system process but also additional parameter characteristics, regarded as intelligent P&ID. Compared with traditional P&ID, it can more conveniently and quickly create process flow diagrams and automatically generate drawings and tables required for process design, such as pipeline tables, pipeline characteristic tables, and valve tables. On this basis, the attributes in the P&ID diagram can be linked to the database system, providing a data basis for 3D modeling.文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/167.html

ZWPD CAD Platform文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/167.html

2-autocad.jpg文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/167.html

   AutoCAD Platform文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/167.html

3-hc.jpg文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/167.html

    Haocad Platform文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/167.html

Software Features文章源自CIDIGITAL-https://www.cidrg.cn/en/knowledge/167.html

  1. Easily Draw P&ID

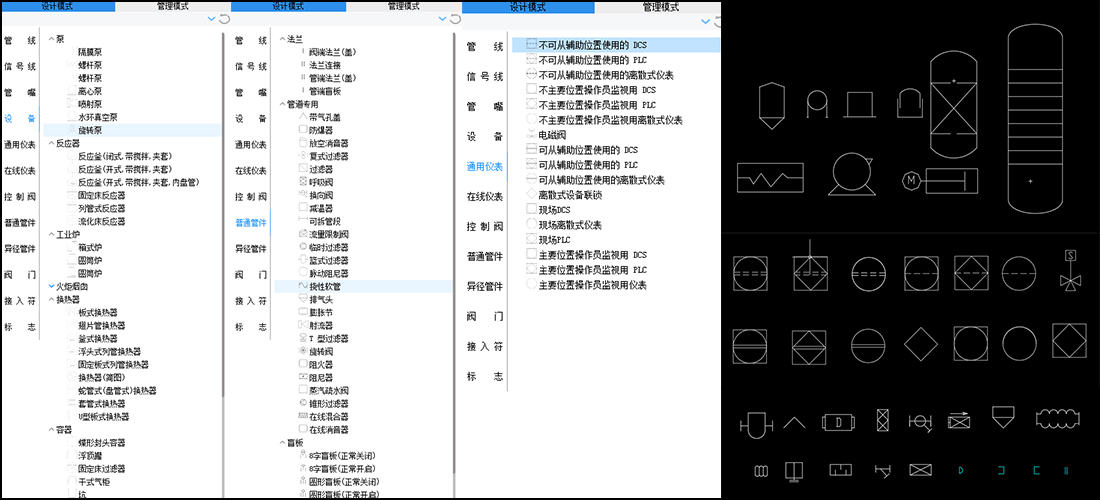

    1. Rich Graphic LibraryNo need to draw manually, built-in various symbol libraries, directly selectable for useGraphic Display.jpg

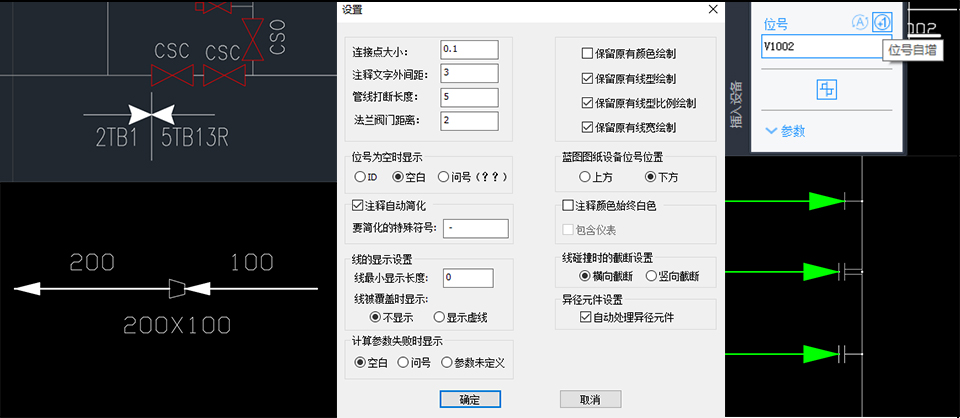

    2. Automated Drawing MethodsThe software provides many automated drawing logics, such as automatically adding nozzles, automatic pipeline grade demarcation, automatic generation of reducers, automatic addition of position numbers, etc., reducing repetitive work time and greatly improving drawing efficiency.Automation.jpg
    3. Quick Edit CommandsNumerous auxiliary drawing and editing tools can make P&ID design more efficientQuick Edit.jpg

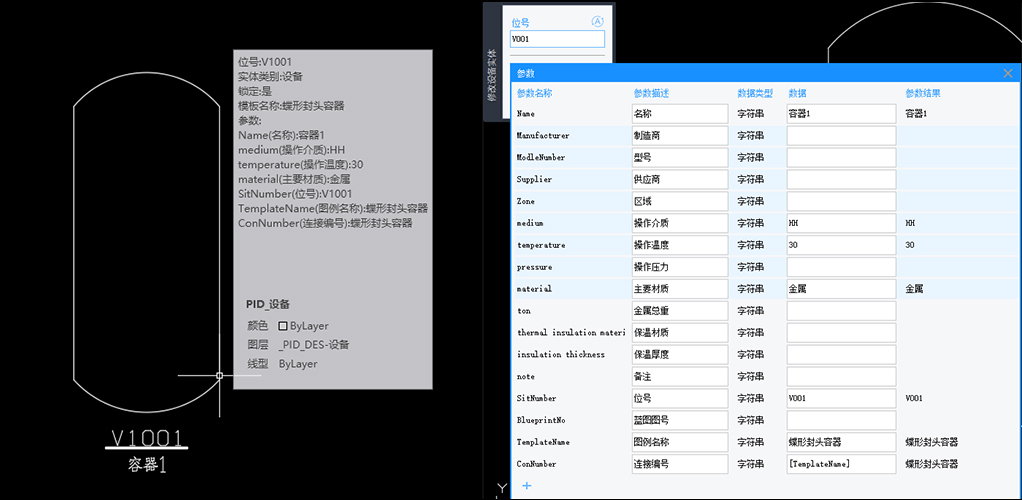

  2. Parameterized P&ID GraphicsIntelligent flow diagrams store more parameter information, and the 3D database can be filled during the drawing process, eliminating secondary work and saving time costs.Parameterization.jpg

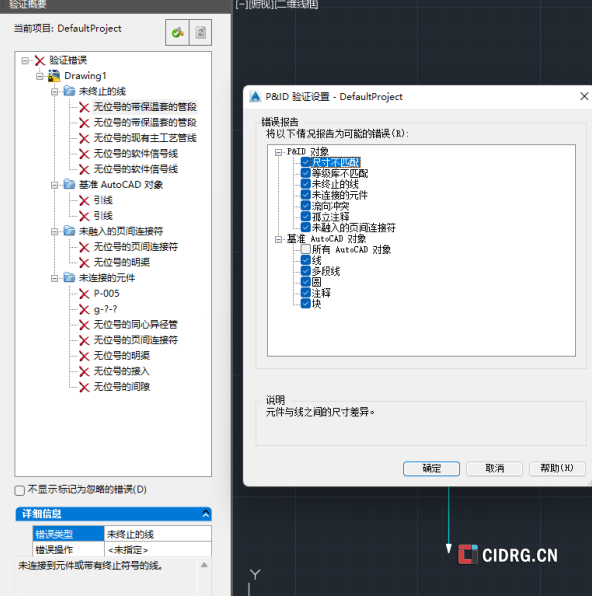

  3. Design CheckCheck the connection relationships, size matches, and flow direction conflicts of existing entities in the P&ID sketches, and display corresponding error data.Design Check.png

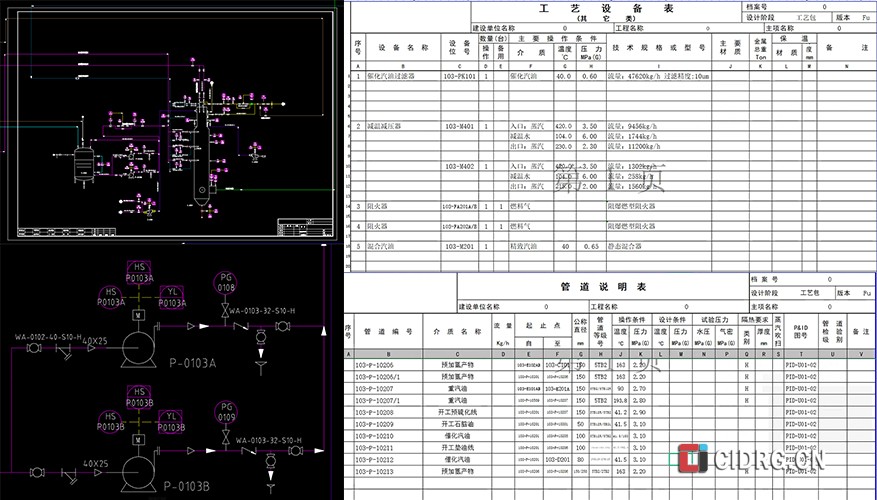

  4. One-Click Generation of Drawings/Material ListsAccording to the parameter data set during design, generate P&ID drawings and material lists (process equipment lists, pipeline specification lists, valve lists, etc.), supporting drawing frame and material list template settings.Generate Drawings and Lists.jpg

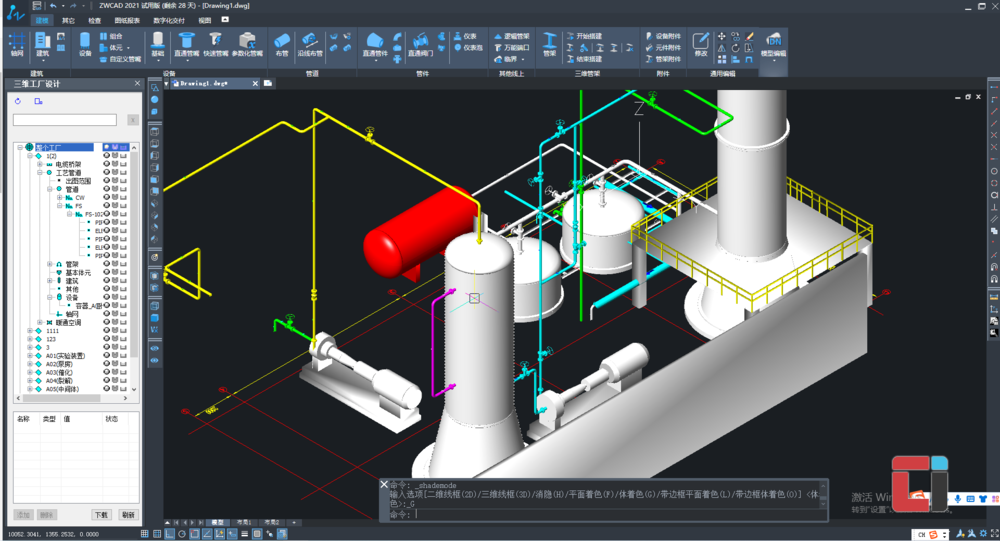

  5. Automatic ModelingBased on the P&ID design data, modeling data can be provided in the modeling module. A new CAD process is started to directly open the P&ID sketch corresponding to the model.

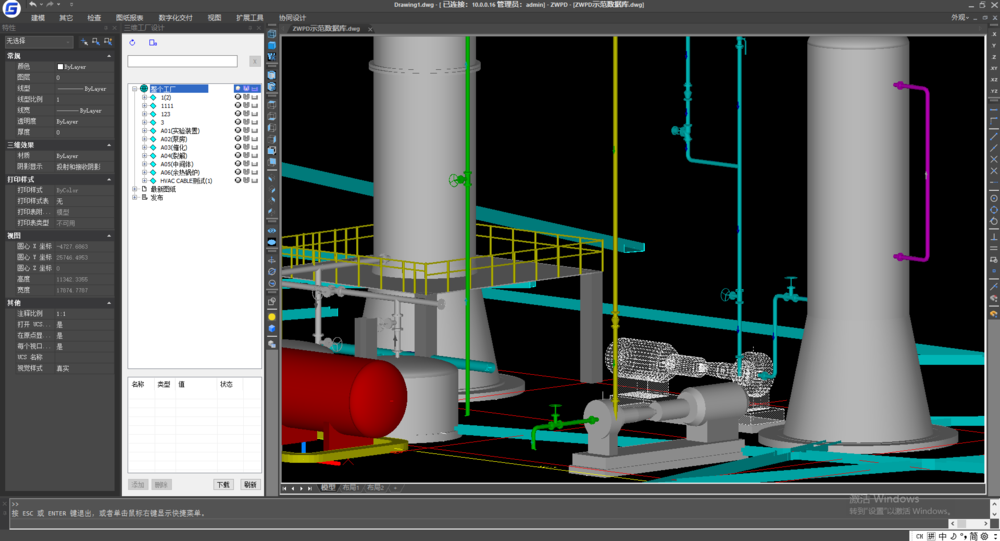

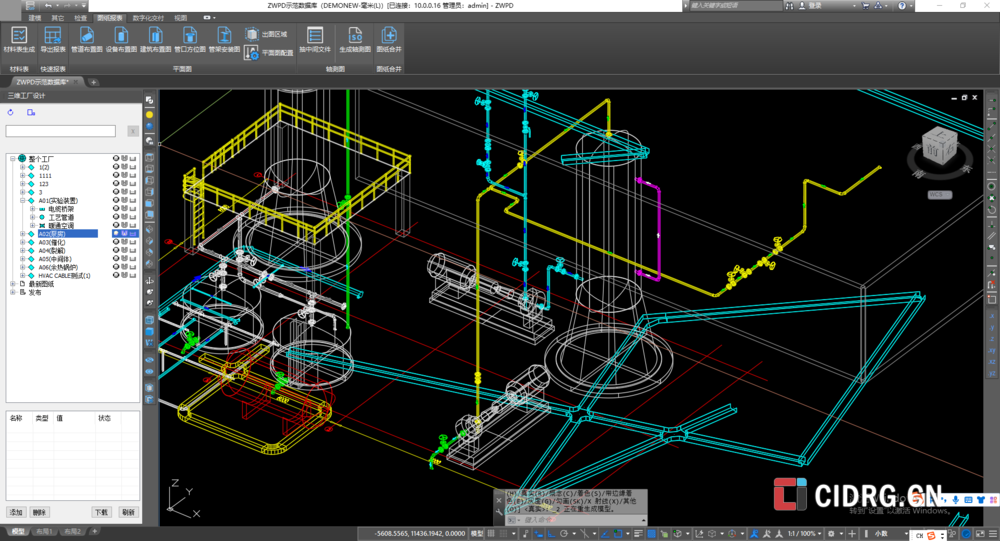

  6. Consistency CheckThe modeling module provides consistency check functions to check whether the model is consistent with the P&ID design, display the inconsistencies, locate the inconsistent entity positions, attempt to provide solutions for the inconsistencies, and refresh the display after resolving the inconsistencies. A new CAD process is started to directly open the P&ID sketch corresponding to the model.
    Consistency Check.png
    A complete digital solution allows designers to intuitively perceive the plant during the design phase, providing a more comprehensive control over the problems.
